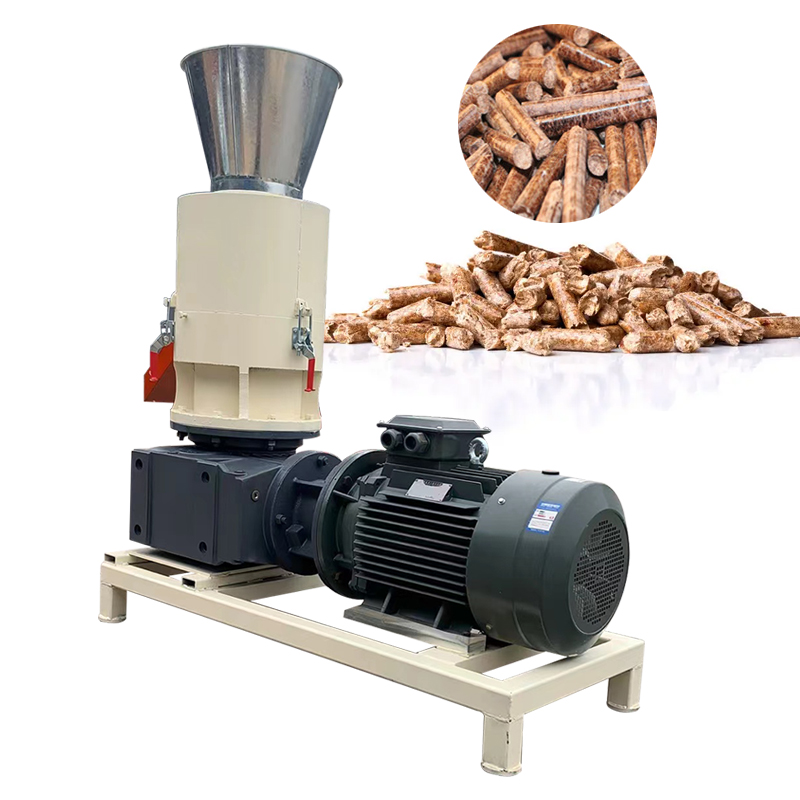

Sawdust Pellet Machine

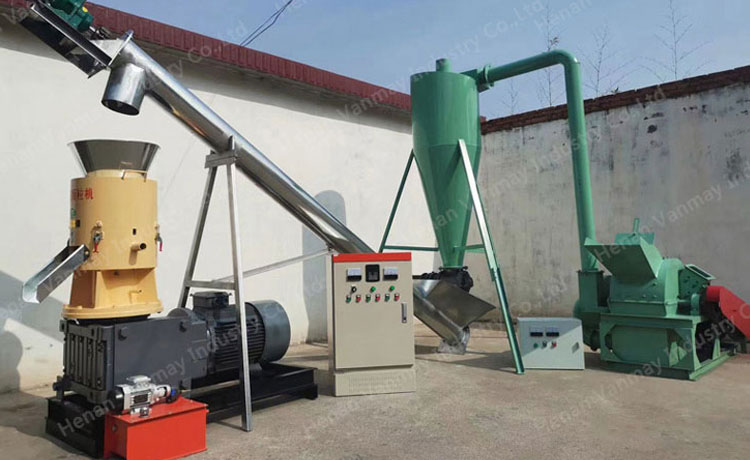

Our Vanmay Animal Feed Pellet Machine is widely used to make small scale fuel pellets at home, on the farm, in the yard or outside in the open air. The raw materials can be straw, peanut shells, wood chips, rice husk, cotton stalk, cotton seed hull, weeds and other crops straw. The raw material is spread evenly into the space between the flat die and roller, and pressed into the mould hole, formed column shape pellets, the pellets will rotate along with the rotating ring die mould and will be cutted when the length of the column pellet reach to a certain value.The wood pellet production lines always come with wood crusher machine, screw conveyor, and wood pellet machine.
- Output Capacity: 80-800kg/h;
- Matched Electric Motor Power: 7.5kw-55kw;
- Matched Diesel Engine Power: 25hp-60hp;
- Applied Raw Material: straw, peanut shells, wood chips, rice husk, cotton stalk, cotton seed hull, weeds and other crops straw;
- Main Market: Africa, South America, Southeast Asia, Central Asia, Middle East, and etc…
- Warranty Period: 12 Months.

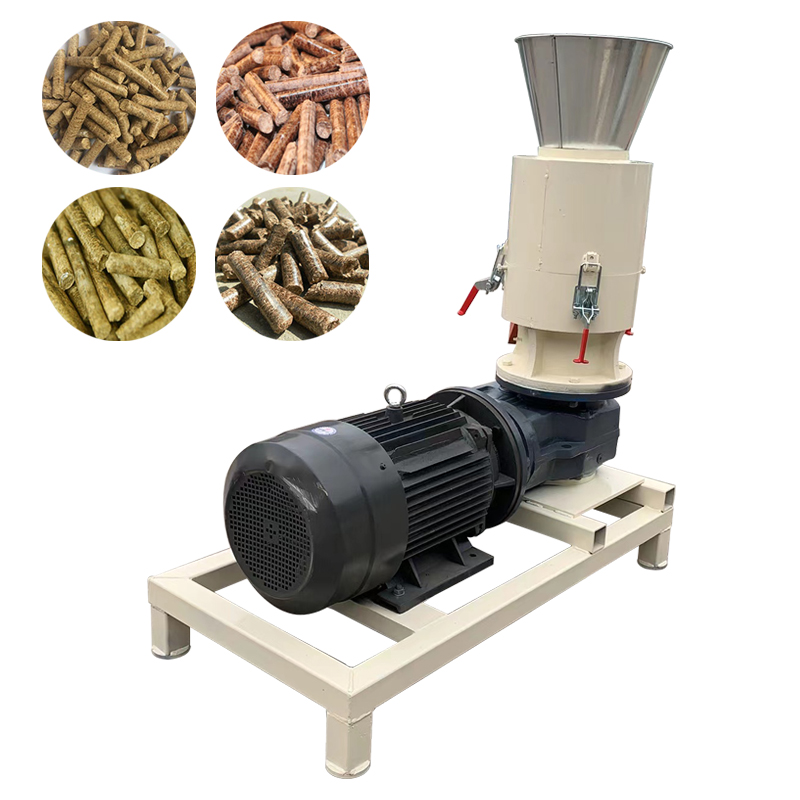

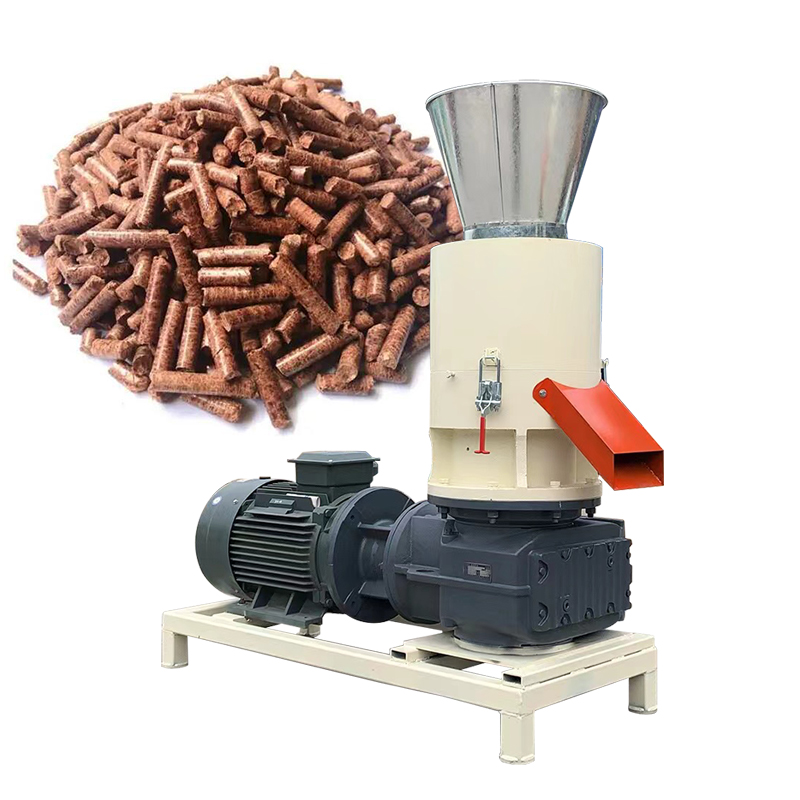

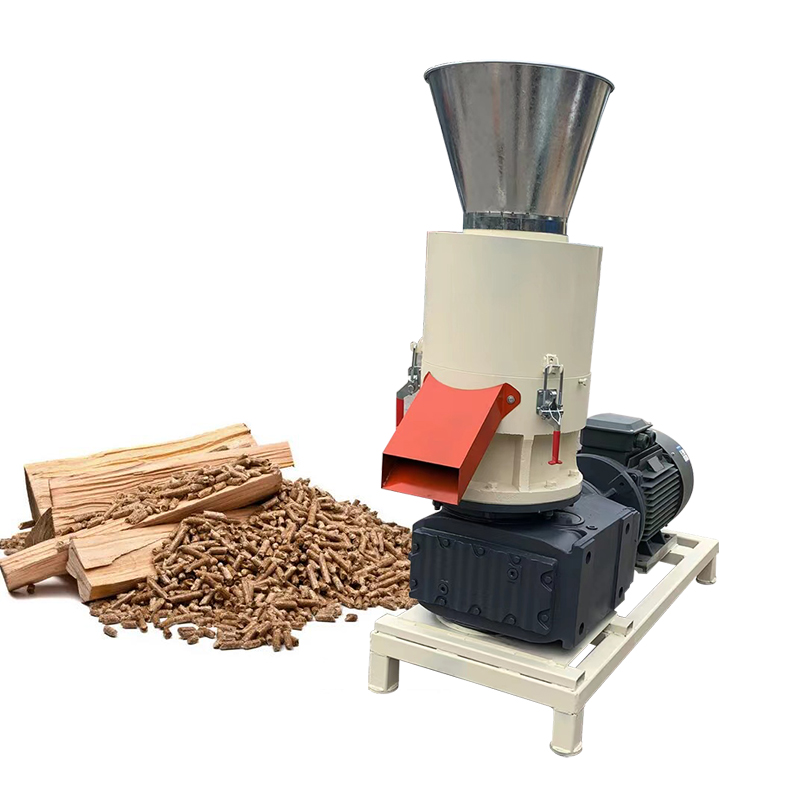

Sawdust Pellet Machine for Sale
Our Vanmay’s Sawdust Pellet Machine is widely used to make small scale fuel pellets at home, on the farm, in the yard or outside in the open air. The raw materials can be straw, peanut shells, wood chips, rice husk, cotton stalk, cotton seed hull, weeds and other crops straw. The raw material is spread evenly into the space between the flat die and roller, and pressed into the mould hole, formed column shape pellets, the pellets will rotate along with the rotating ring die mould and will be cutted when the length of the column pellet reach to a certain value.The wood pellet production lines always come with wood crusher machine, screw conveyor, and wood pellet machine.
Table of Contents
- Sawdust Pellet Machine for Sale
- Sawdust Pellet Machine Wide Application
- Sawdust Pellet Machine Suitable for Various Materials
- Sawdust Pellet Machine Features
- Sawdust Pellet Machine Structure
- Sawdust Pellet Machine Technical Data
- Sawdust Pellet Machine Factory Show
- Sawdust Pellet Machine Delivery
- FAQ
- Why Choose US ?

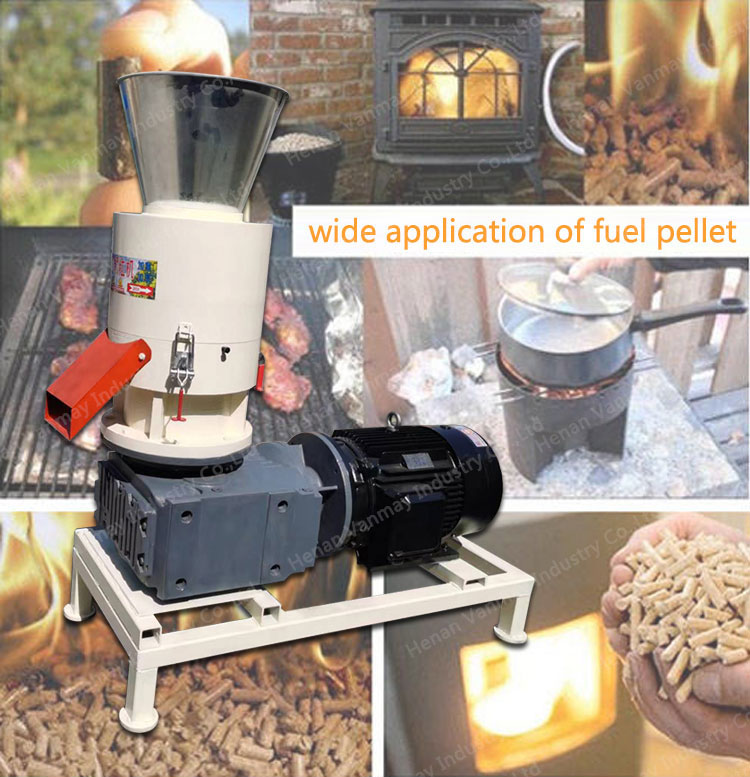

Sawdust Pellet Machine Wide Application
Our Vanmay Animal Feed Pellet Machine is widely used to make crushed raw materials to be pellets for animals food.
Sawdust Pellet Machine Suitable for Various Materials
Sawdust Pellet Machine Features
- Simple structure, easy to clean and maintain;
- Spare parts are easy to change, less cost for rollers and dies;
- Simple operating, just 1 worker is OK;
- Easy to change new dies and rollers faster to save working time;
- Small and light weight, which can be used in home, small farm and light industrial field;
- The connections between feed pellet machine and differential mechanism are sealed with imported rubber to prevent oil leakage;
- The universal link shaft is made of 42CrMo, which is more durable and not easy to break. The link part is filled with butter for protecting the pellet making machine before delivery.

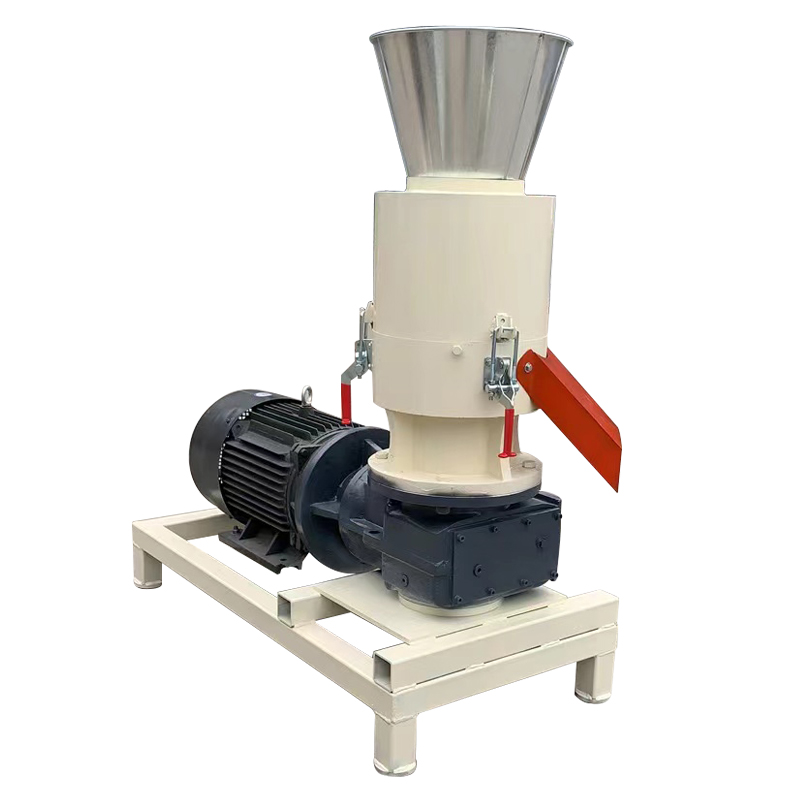

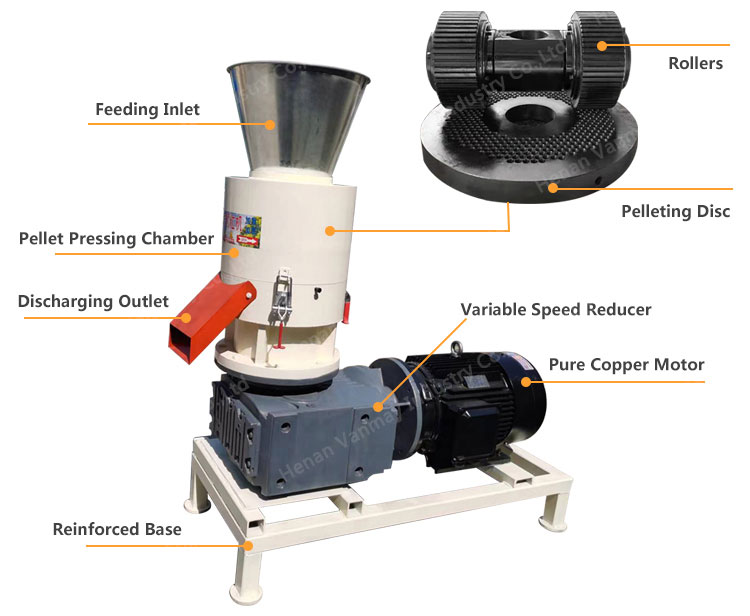

Sawdust Pellet Machine Structure
Sawdust Pellet Machine Technical Data
| Model | WP-200 | WP-300 | WP-400 | WP-500 |
| Capacity (kg/h) | 80 | 300 | 600 | 800 |
| Electric Motor Power (kw) | 7.5 | 18.5 | 30 | 55 |
| Diesel Engine Power (hp) | 25 | 60 | / | / |
| Rotation Speed (r/min) | 75 | |||
| Number of Rollers (pcs/set) | 2 | |||
| Pelleting Disc Diameter (mm) | 210 | 299 | 399 | 500 |
| Pelleting Disc Quantity | 1pcs for free(8mm) | |||
| Overall Dimension (mm) | 1050*520*1050 | 1200*600*1070 | 1410*610*1260 | 1700*770*1500 |
| Main Machine Weight (kg) | 200 | 480 | 970 | 1300 |

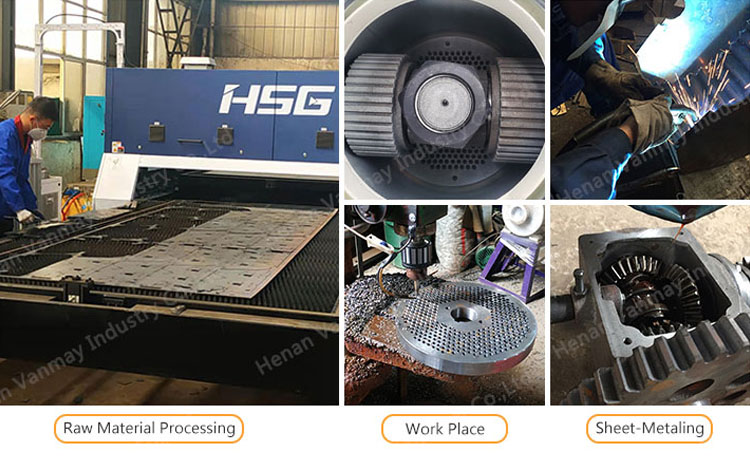

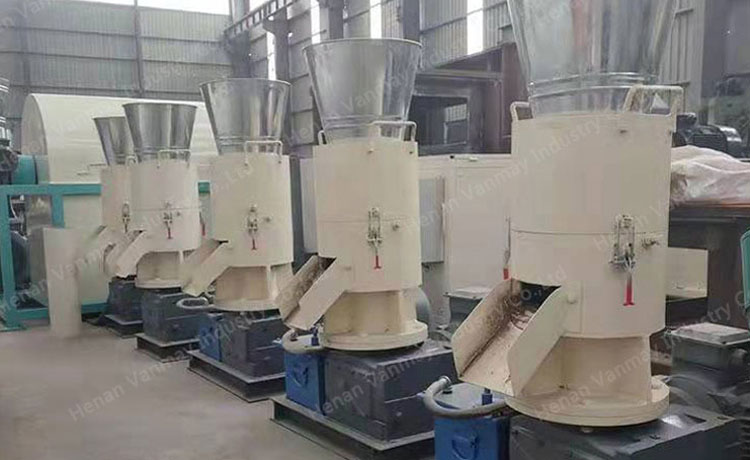

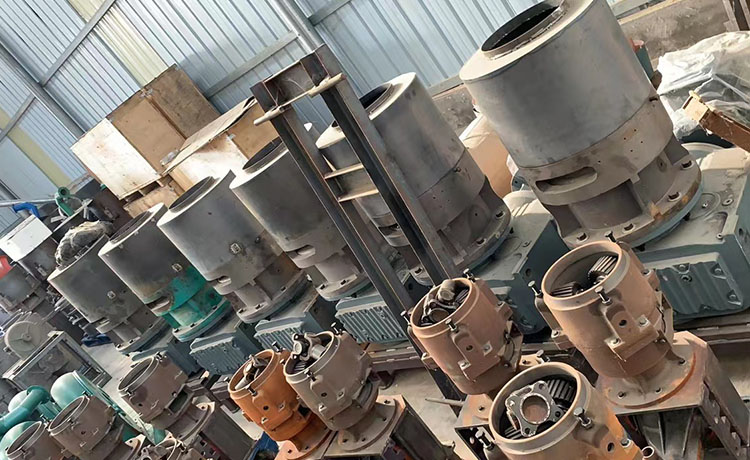

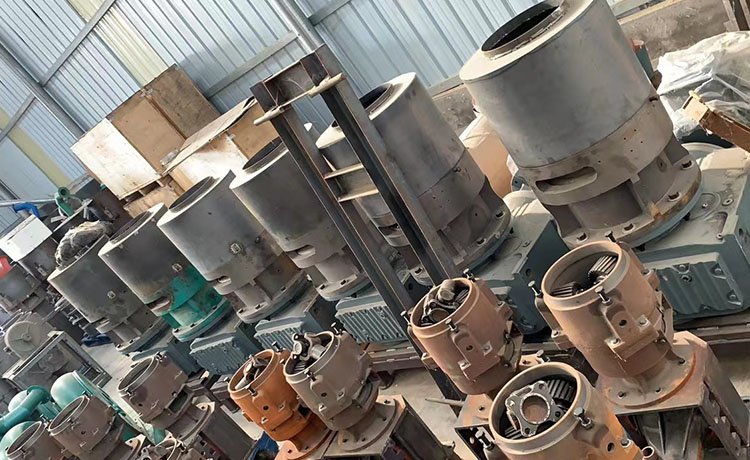

Sawdust Pellet Machine Factory Show
Sawdust Pellet Machine Delivery
FAQ
- Q1: What is the MOQ for your Pellet Making Machine Wood?
- A: Our MOQ is 1 set. And any order quantities are highly appreciated.
- Q2: Can I get a sample of your Wood Pellet Making Machine?
- A: Yes, surely, we would like to provide the sample for you. But, we are afraid that you will pay for the sample and delivery cost.
- Q3: What is your guarantee period for your Sawdust Pellet Making Machine?
- A: Our feed cube making machine guarantee period is 12 months, and we also provide 24 hours on-line service if any questions.
- Q4: Do you accept OEM & ODM?
- A: Yes, OEM & ODM projects are available. You are warmly weclome to have your own color, logo, company name, contacts and any design on the Biomass Wood Pellet Machine for home. Even we are willing to design the color, logo, packages for you.
- Q5: Can I test your Wood Pellet Mill Machine with the raw material when visiting your factory?
- A: Yes, surely, any testing our Wood Sawdust Pellet Machine with the raw material is highly appreciated.
Why Choose US ?
- Henan Vanmay Industry Co.,Ltd, is a professional manufacturer for producing agricultural machinery, which is located in Zhengzhou City, Henan Province, China, and has built a good and high reputation on building the agricultural machinery equipment. Vanmay is recognized globally as an professional supplier in providing industry leading process design, engineering and manufacturing to a variety of industry machines. Vanmay Industry always insists on providing highly customized machinery and solutions according to customers’ requirements, from single machine to complete production line for customers from all over the world. For a long time, Vanmay Industry has always adhered to the road of globalization, and has exported to more than 150 countries and regions, such as Africa, Central Asia, Southeast Asia, South Asia, South America, Central America, Russia, Australia, Middle East.
- Vanmay’s Main Products: Chaff Cutter Machine, Feed Pellet Machine, Biomass Pellet Machine, Grinder Mill Machine, Harvester Machine, Thresher/Sheller Machine, Mixer Machine, Oil Press Machine, Wood Crusher Machine, Dryer Machine.
- Vanmay’s Goal: Providing clients the high-quality products and solutions, professional services.
- From initial feasibility report and testing, to engineering, manufacturing, and after-sales services, we bring our great passion for quality and service into everything we do. Sincerely do hope that we can cooperate with you to maximize the mutual benefits of all parties involved, and foward to a beautiful and brightful future together.
