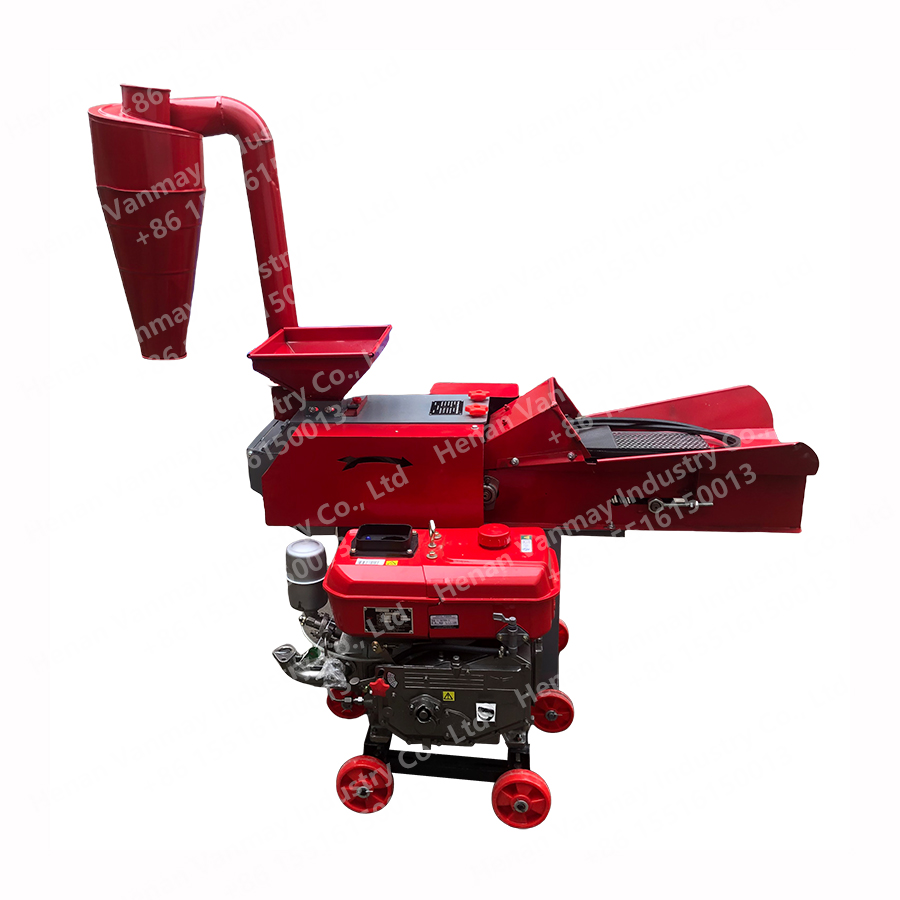

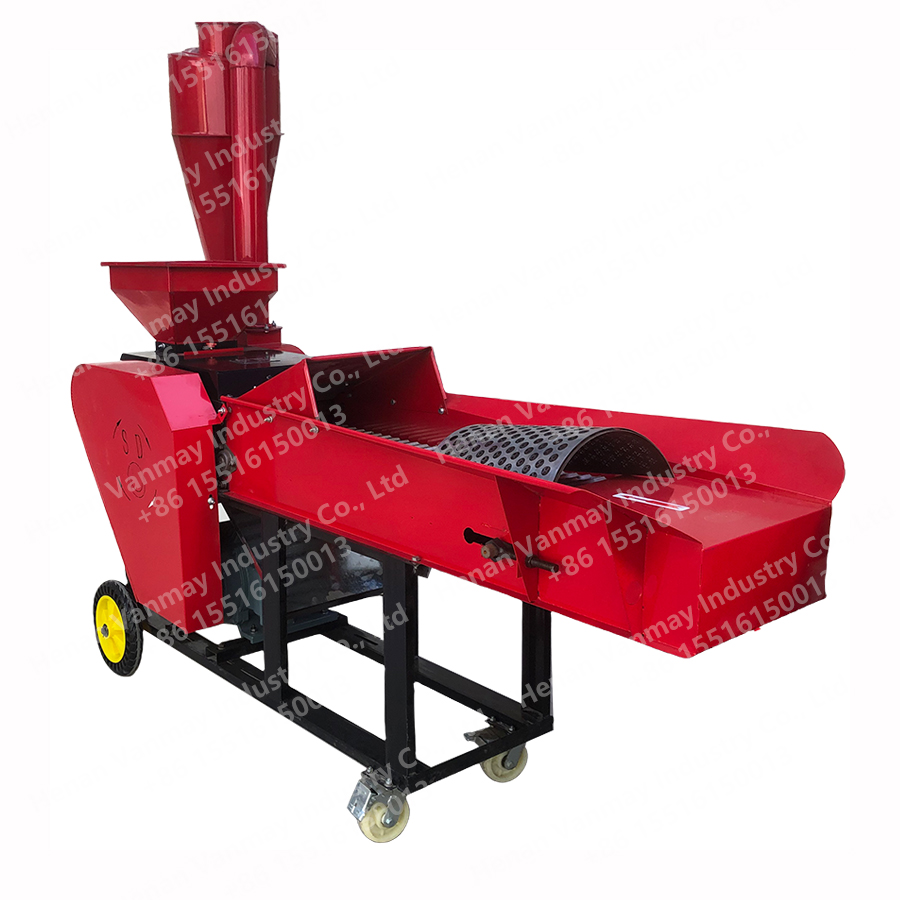

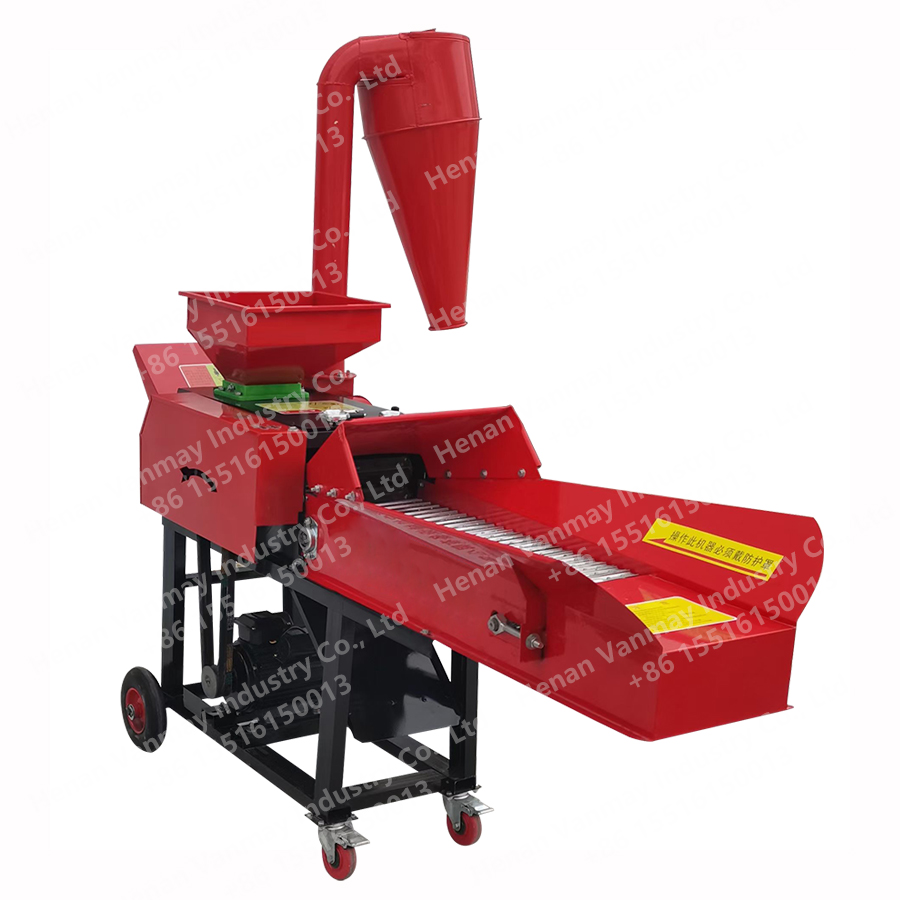

Grass Chopper Combined Grinding Machine
Our Vanmay Silage Chopper Machine is widely used for cutting/chopping all kinds of fresh (dry) grass, fresh (dry) corn/wheat stalk, rice straw, other crops stalk, tree branch, and etc…
- Chopper Capacity: 2800-6800kg/h;
- Grinding Capacity: 300-800kg/h;
- Matched Electric Motor Power: 4kw-7.5kw;
- Matched Diesel Engine Power: 4.0hp-15hp;
- Applied Raw Material: Fresh/Dry Grass, Millet Straw, Rice Straw, Corn/Wheat Stalk;Corn Cob,Maize Kernel, Grains,and etc…
- Main Market: Africa, South America, Southeast Asia, Central Asia, Middle East, and etc…
- Warranty Period: 12 Months.

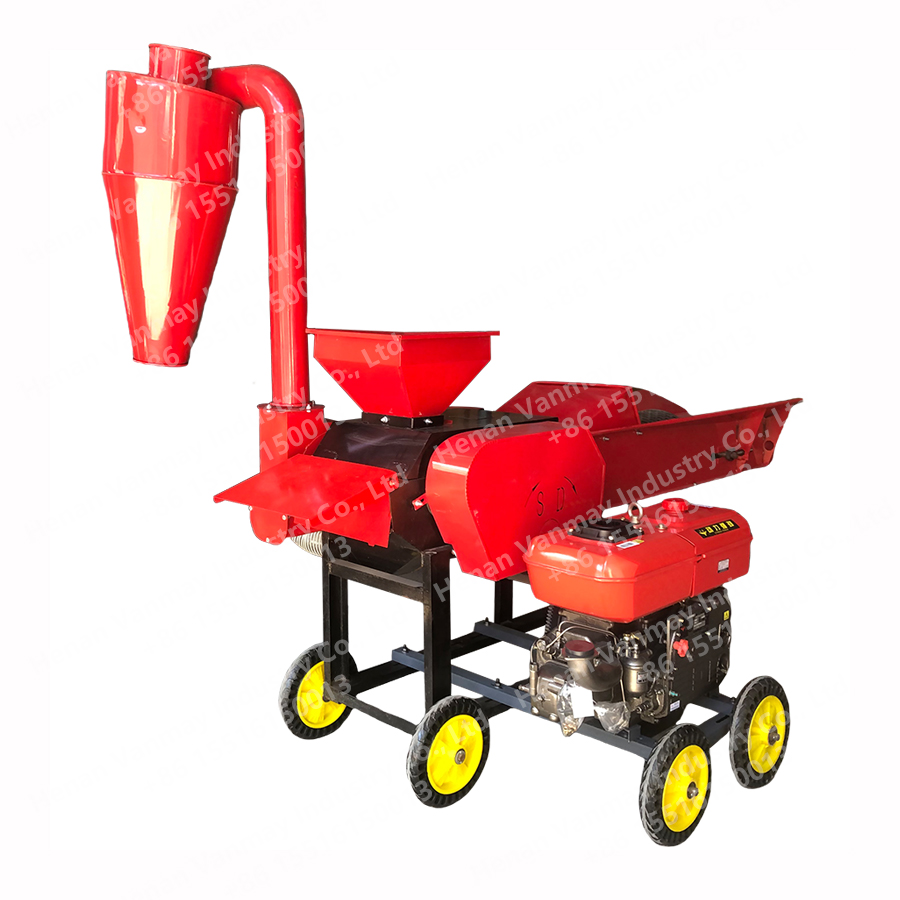

Grass Chopper Combined Grinding Machine for Sale
Our Vanmay Grass Chopper Combined Grinder Machine is the best choice for family or dairy farm to breed animals, such as cow, sheep, deer, horses, rabbit, etc…Our Grass Chopper Combined Grinder Machine is with features of all compacting steel structure, small volume, single phase or three phase power supply, light weight and easy operation.

Table of Contents
- Grass Chopper Combined Grinding Machine
- Grass Chopper Combined Grinding Machine for Sale
- Grass Chopper Combined Grinding Machine Wide Application
- Grass Chopper Combined Grinding Machine Suitable for Various Materials
- Grass Chopper Combined Grinding Machine Features
- Grass Chopper Combined Grinding Machine Structure
- Grass Chopper Combined Grinding Machine Technical Data
- Different Types of Grass Chopper Combined Grinding Machine
- Different Models of Grass Chopper Combined Grinding Machine
- Grass Chopper Combined Grinding Machine Factory Show
- Grass Chopper Combined Grinding Machine Delivery
- FAQ
- Why Choose US ?
Grass Chopper Combined Grinding Machine Wide Application

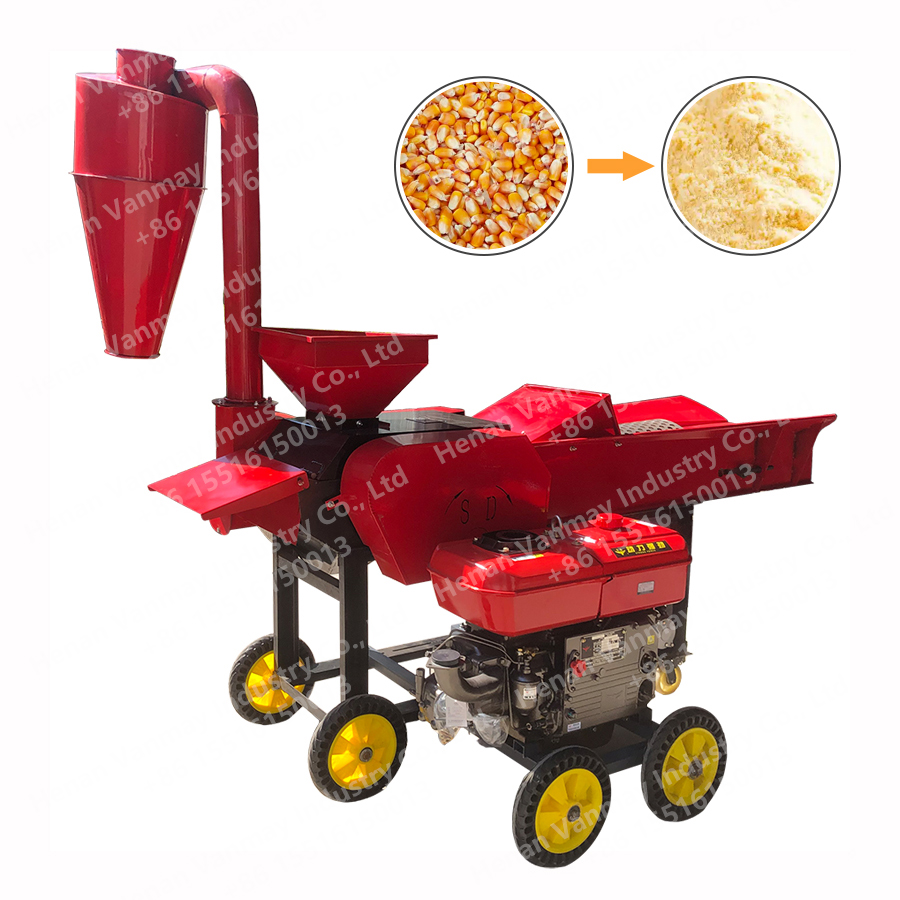

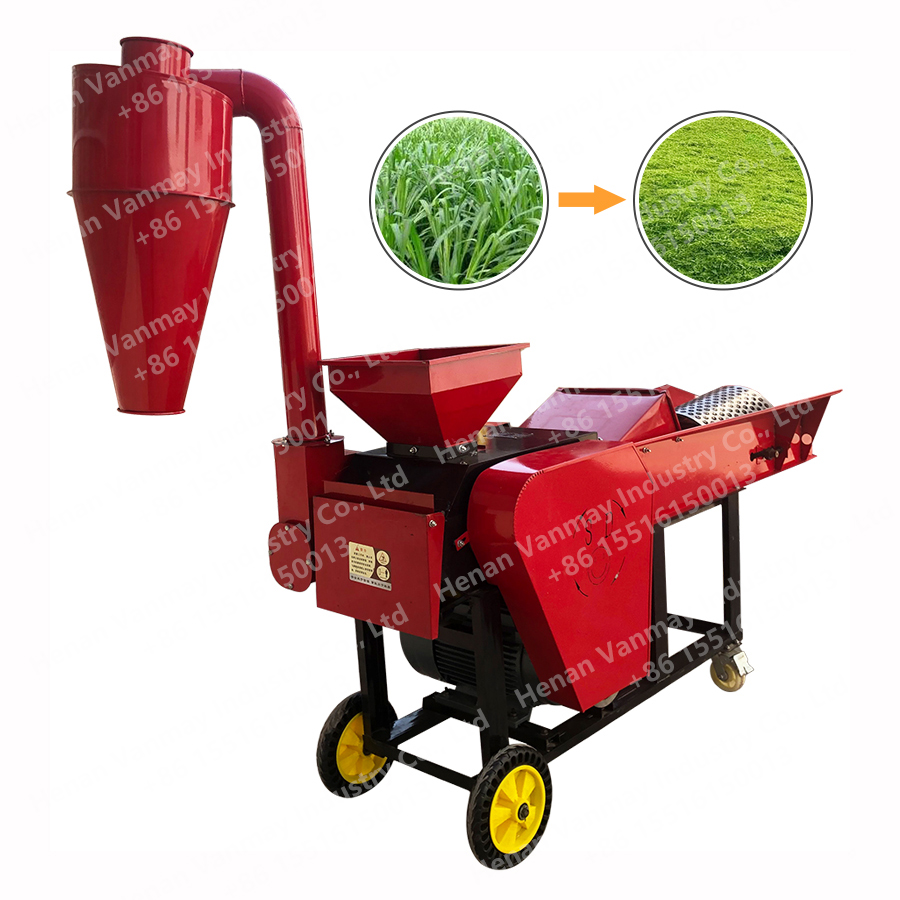

Our Vanmay Grass Chopper Combined Grinder Machine is widely used for cutting fresh (dry) grass, fresh (dry) corn straw, wheat straw, rice straw, stalks, other crops straw and etc…What is more, our Vanmay Grass Chopper Combined Grinder Machine also can grind all kinds of grains into fine powder.

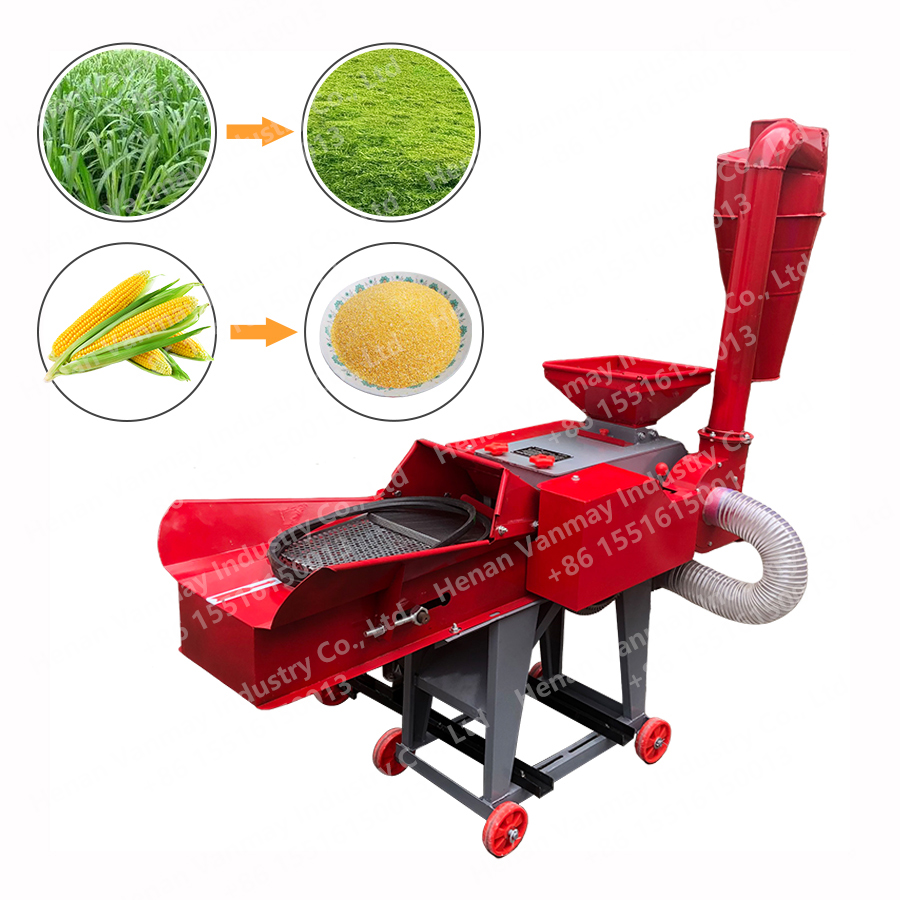

Grass Chopper Combined Grinding Machine Suitable for Various Materials

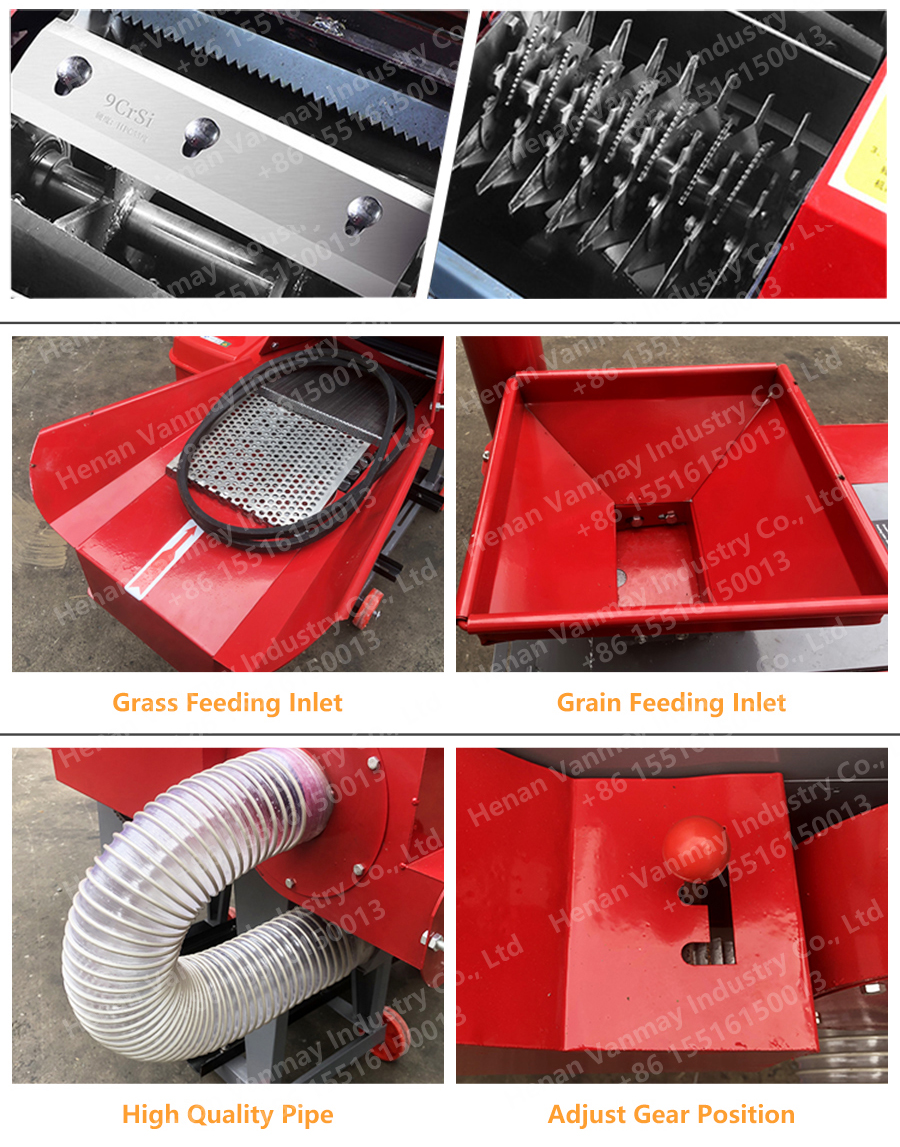

Grass Chopper Combined Grinding Machine Features

- High cutting rate and less power consumption;
- Any OEM/ODM or customization is highly welcomed;
- Longer service life because of high quality;
- Discharging size can be adjusted easily;
- Diverse driven engine for more choice;
- Reasonable steel frame structure, small volume, light weight, and convenient to move.

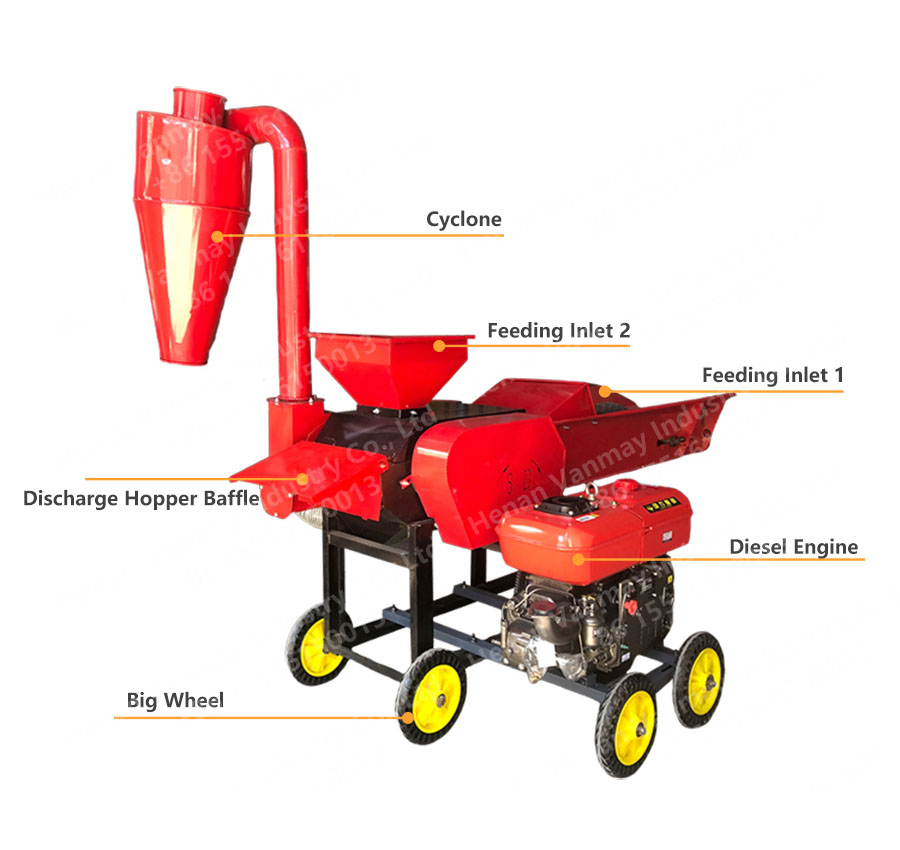

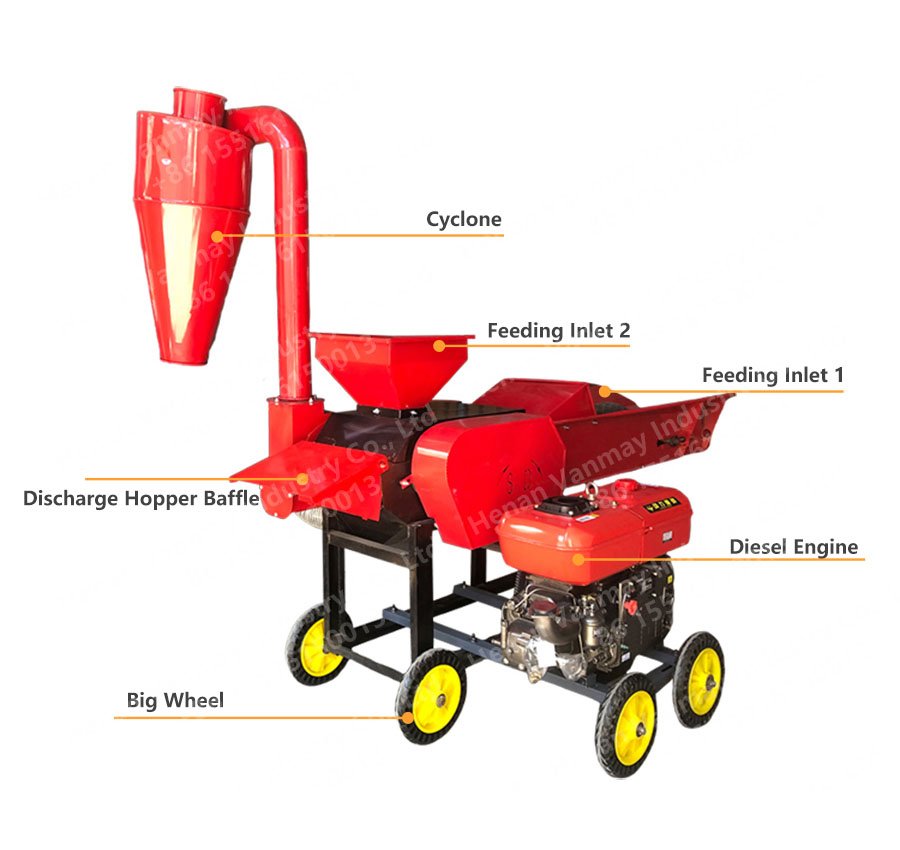

Grass Chopper Combined Grinding Machine Structure


Grass Chopper Combined Grinding Machine Technical Data
Model | 9ZR-2.8 | 9ZR-3.8 | 9ZR-6.8 |
Chopper Capacity | 2800kg/h | 3800kg/h | 6800kg/h |
Grinding Capacity | 300kg/h | 500kg/h | 800kg/h |
Electric Motor Power | 4kw | 4kw | 7.5kw |
Diesel Engine Power | 4hp | 8hp | 15hp |
Cutting Length | 10/19mm | 10/19mm | 9/20mm |
Screen Quantity | 4pcs | 4pcs | 4pcs |
Blades Quantity | 6pcs | 6pcs | 3pcs |
Hammers Quantity | 36pcs | 21pcs | 48pcs |
Main Machine Weight | 85kg | 95kg | 180kg |
Overall Dimension | 1550*500*800mm | 1800*550*950mm | 2200*880*1800mm |

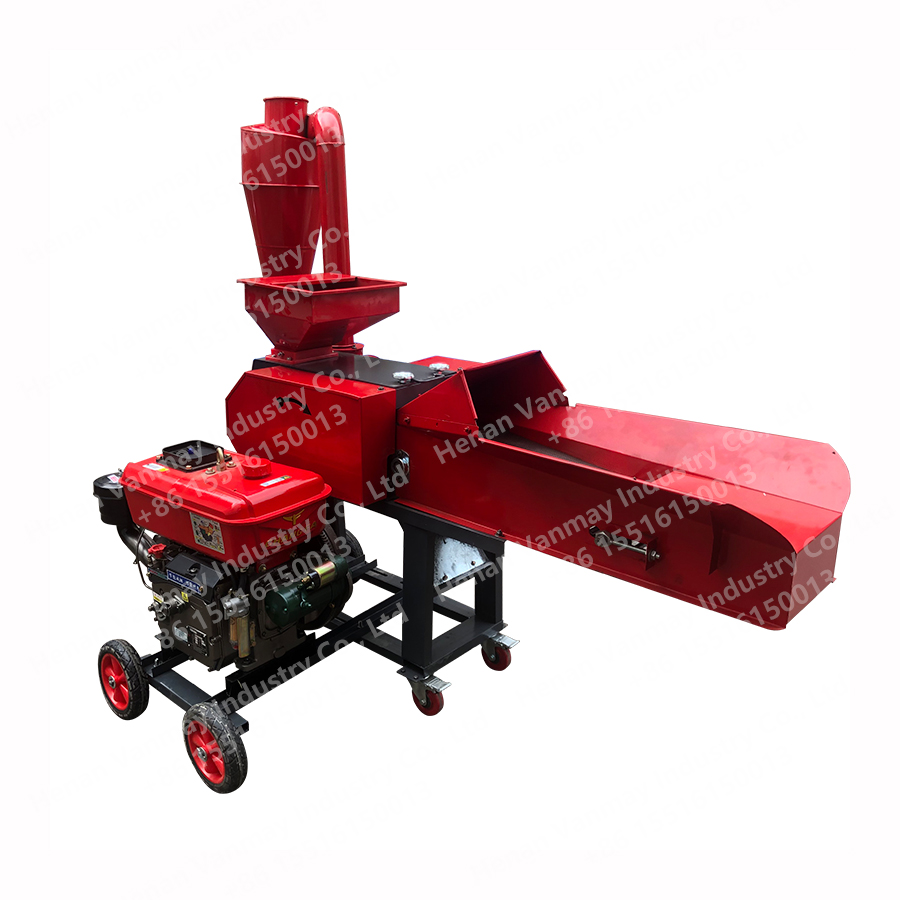

Different Types of Grass Chopper Combined Grinding Machine


Different Models of Grass Chopper Combined Grinding Machine



Grass Chopper Combined Grinding Machine Factory Show



Grass Chopper Combined Grinding Machine Delivery








FAQ
- Q1: What is the MOQ for your Feed Chopper Machine ?
- A: Our MOQ is 10 sets. And any order quantities are highly appreciated.
- Q2: Can I get a free sample of your Grass Cutting Machine?
- A: Yes, surely, we would like to provide the sample for you. But, we are afraid that you will pay for the sample and delivery cost.
- Q3: What is your guarantee period for your Wheat Stalk Chopper Machine?
- A: Our Grass Cutter Machine guarantee period is 12 months, and we also provide 24 hours on-line service if any problems happen.
- Q4: Do you accept OEM & ODM?
- A: Yes, OEM & ODM projects are available. You are warmly weclome to have your own color, logo, company name, contacts and any design on the Grass Chopper Machine. Even we are willing to design the color, logo, packages for you.
- Q5: Can I test your Corn Stalk Chopper Machine with the raw material when visiting your factory?
- A: Yes, surely, any testing our Silage Cutter Machine with the raw material is highly appreciated.
Why Choose US ?
- Henan Vanmay Industry Co.,Ltd, is a professional manufacturer for producing agricultural machinery, which is located in Zhengzhou City, Henan Province, China, and has built a good and high reputation on building the agricultural machinery equipment. Vanmay is recognized globally as an professional supplier in providing industry leading process design, engineering and manufacturing to a variety of industry machines. Vanmay Industry always insists on providing highly customized machinery and solutions according to customers’ requirements, from single machine to complete production line for customers from all over the world. For a long time, Vanmay Industry has always adhered to the road of globalization, and has exported to more than 150 countries and regions,such as Africa,Central Asia,Southeast Asia,South Asia,South America,Central America,Russia,Australia,Middle East.
- Vanmay’s Main Products: Chaff Cutter Machine,Feed Pellet Machine,Biomass Pellet Machine,Grinder Mill Machine,Harvester Machine,Thresher/Sheller Machine,Mixer Machine,Oil Press Machine,Wood Crusher Machine,Dryer Machine.
- Vanmay’s Goal: Providing clients the high-quality products and solutions, professional services.
- From initial feasibility report and testing, to engineering, manufacturing, and after-sales services, we bring our great passion for quality and service into everything we do. Sincerely do hope that we can cooperate with you to maximize the mutual benefits of all parties involved, and foward to a beautiful and brightful future together.
