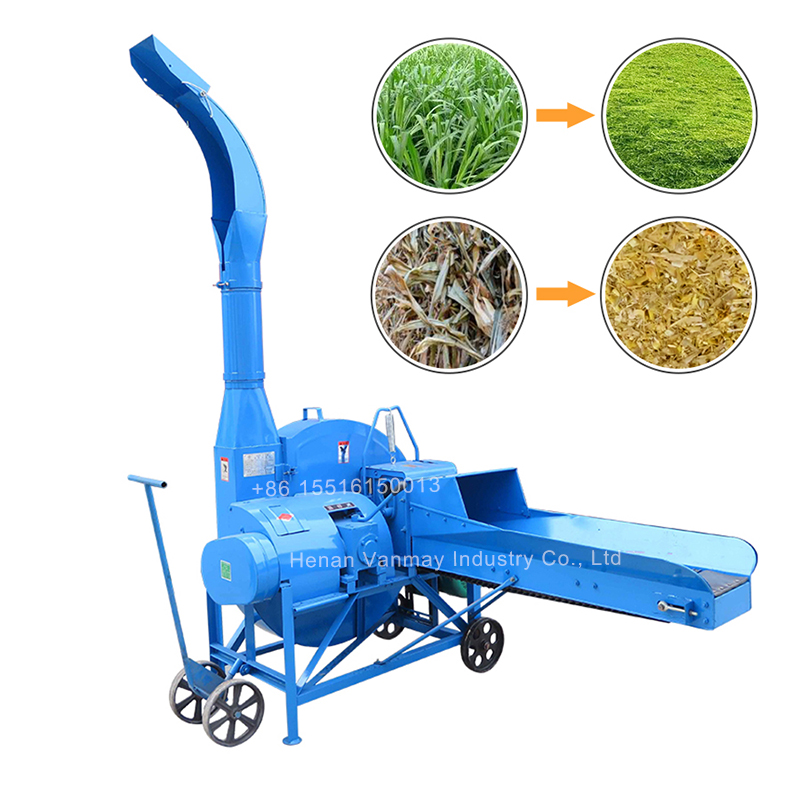

Chaff Cutter
Our Vanmay Chaff Cutter Machine is widely used for cutting/chopping all kinds of fresh (dry) grass, fresh (dry) corn/wheat stalk, rice straw, other crops stalk, tree branch, and etc…
- Output Capacity: 4.5-5.0t/h;
- Matched Electric Motor Power: 5.5kw;
- Matched Diesel Engine Power: 12hp;
- Applied Raw Material: Fresh/Dry Grass, Millet Straw, Rice Straw, Corn/Wheat Stalk;
- Main Market: Africa, South America, Southeast Asia, Central Asia, Middle East, and etc…
- Warranty Period: 12 Months.
Chaff Cutter for Sale
Our Chaff Cutter Machine are available in different types and numerous model sizes in each type to adapt to various customers’ requirements. Its capacity can be from 1.0tph to 30.0tph. Our Chaff Cutter Machine are very popular both domestically and internationally, which exported to more than 150 countries, such as India, Pakistan, Spain, Zambia, Kenya, Nigeria, Cameroon, Spain, Australia, Panama, Peru, Mexico, Indonesia, Thailand, and etc…
Table of Contents
- Chaff Cutter for Sale
- Chaff Cutter Wide Application
- Chaff Cutter Suitable for Various Materials
- Chaff Cutter Features
- Chaff Cutter Structure
- Chaff Cutter Technical Data
- Different Types of Chaff Cutter
- Different Models of Chaff Cutter
- Chaff Cutter Factory Show
- Chaff Cutter Delivery
- FAQ
- Why Choose US ?
Chaff Cutter Wide Application
Our Vanmay Cutting Machine 9ZP-4.5 is widely used for cutting fresh (dry) grass, fresh (dry) corn straw, wheat straw, rice straw, stalks, other crops straw and etc…It is the best choice for family or dairy farm to breed animals, such as cow, sheep, deer, horses, rabbit, etc…
Chaff Cutter Suitable for Various Materials
Chaff Cutter Features
- High cutting rate and less power consumption;
- Any OEM/ODM or customization is highly welcomed;
- Longer service life because of high quality;
- Discharging size can be adjusted easily;
- Diverse driven engine for more choice;
- Reasonable steel frame structure, small volume, light weight, and convenient to move.
Chaff Cutter Structure
Chaff Cutter Technical Data
| Model | 9ZP-2.5 | 9ZP-4.5 | 9ZP-6.5 | 9ZP-10 |
| Capacity | 2.5t/h | 4-4.5t/h | 5.5-6.5t/h | 10 t/h |
| Matched Electric Motor Power | 4.0kw | 5.5kw | 7.5kw | 18.5kw |
| Matched Diesel Engine Power | 8hp | 12hp | 15hp | 25hp |
| Blades Quantity | 4pcs/6pcs | 4pcs | 4pcs | 4pcs |
| Cutting Length | 8-23mm | 12-35mm | 10-36mm | 12mm,18mm,25mm,35mm |
| Spindle Speed | 800r/min | 800r/min | 650r/min | 630r/min |
| Inlet Type | Automatic type or Manual type | Automatic type | Automatic type | Automatic type |
| Main Machine Weight | About 150kg | About 300kg | About 420kg | About 1000kg |
| Overall Dimension | 1230*1150*1695mm | 1737*1575*2315mm | About 2147*1600*2756mm | 2800*2230*4120mm |
Different Types of Chaff Cutter
Different Models of Chaff Cutter
Model: 9ZP-0.4
Capacity: 800-1000kg/h
Model: 9ZP-2.5
Capacity: 2.5-3.0t/h
Model: 9ZP-4.5
Capacity: 4.5-5.0t/h
Model: 9ZP-6.5
Capacity: 6.5-7.0t/h
Model: 9ZP-10
Capacity: 10t/h
Model: 9ZP-15
Capacity: 15t/h
Chaff Cutter Factory Show
Chaff Cutter Delivery
FAQ
- Q1: What is the MOQ for your Feed Chopper Machine ?
- A: Our MOQ is 10 sets. And any order quantities are highly appreciated.
- Q2: Can I get a free sample of your Grass Cutting Machine?
- A: Yes, surely, we would like to provide the sample for you. But, we are afraid that you will pay for the sample and delivery cost.
- Q3: What is your guarantee period for your Wheat Stalk Chopper Machine?
- A: Our Grass Cutter Machine guarantee period is 12 months, and we also provide 24 hours on-line service if any problems happen.
- Q4: Do you accept OEM & ODM?
- A: Yes, OEM & ODM projects are available. You are warmly weclome to have your own color, logo, company name, contacts and any design on the Grass Chopper Machine. Even we are willing to design the color, logo, packages for you.
- Q5: Can I test your Corn Stalk Chopper Machine with the raw material when visiting your factory?
- A: Yes, surely, any testing our Silage Cutter Machine with the raw material is highly appreciated.
Why Choose US ?
- Henan Vanmay Industry Co.,Ltd, is a professional manufacturer for producing agricultural machinery, which is located in Zhengzhou City, Henan Province, China, and has built a good and high reputation on building the agricultural machinery equipment. Vanmay is recognized globally as an professional supplier in providing industry leading process design, engineering and manufacturing to a variety of industry machines. Vanmay Industry always insists on providing highly customized machinery and solutions according to customers’ requirements, from single machine to complete production line for customers from all over the world. For a long time, Vanmay Industry has always adhered to the road of globalization, and has exported to more than 150 countries and regions,such as Africa,Central Asia,Southeast Asia,South Asia,South America,Central America,Russia,Australia,Middle East.
- Vanmay’s Main Products: Chaff Cutter Machine,Feed Pellet Machine,Biomass Pellet Machine,Grinder Mill Machine,Harvester Machine,Thresher/Sheller Machine,Mixer Machine,Oil Press Machine,Wood Crusher Machine,Dryer Machine.
- Vanmay’s Goal: Providing clients the high-quality products and solutions, professional services.
- From initial feasibility report and testing, to engineering, manufacturing, and after-sales services, we bring our great passion for quality and service into everything we do. Sincerely do hope that we can cooperate with you to maximize the mutual benefits of all parties involved, and foward to a beautiful and brightful future together.
